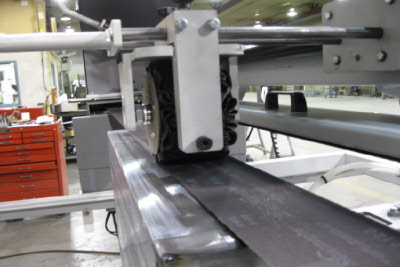

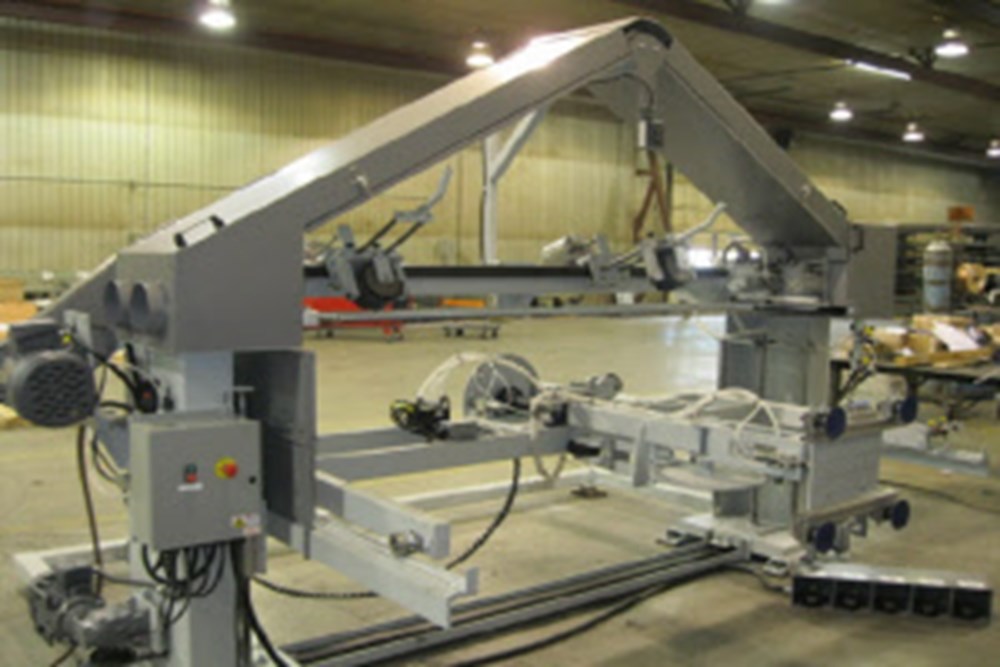

Enclosure Box Stroke Sander (Double Head)

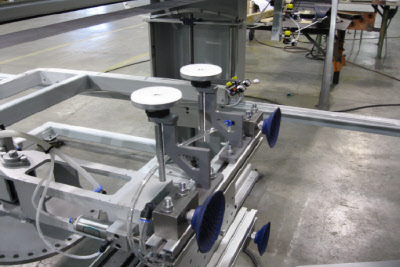

• Various vacuum cups fixtures jigs based on enclosures box shapes and sizes
• Capacity varies from 4"x4"x3"deep to 72"x48"x20"deep
• Maximum Weight Capacity is 250 lbs
• Abrasive belts 4" wide at 4810 FPM, belt return in a triangle shape to allow safe access to sanding belts with manual holding pads

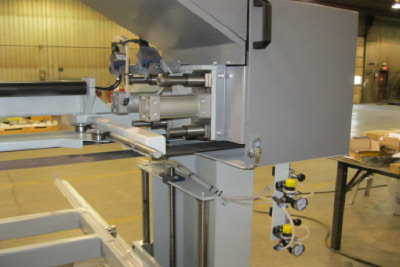

• Pneumatic belt tensioner with linear guides, adjustable pressure by air regulator

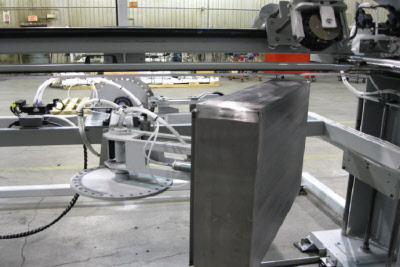

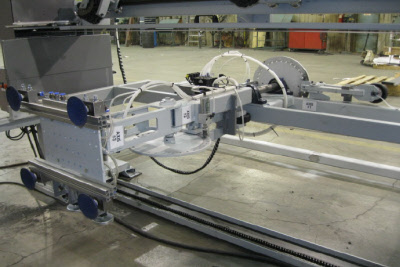

• Multiple axis arm to hold enclosure box by the means of vacuum cups
• Vertical movement of the multiple axis arm powered by electrical motor at a speed of 1" per second

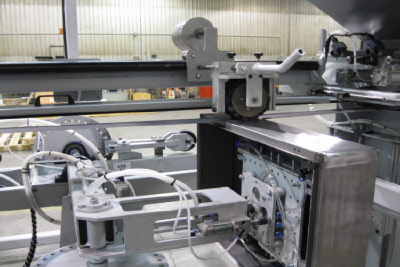

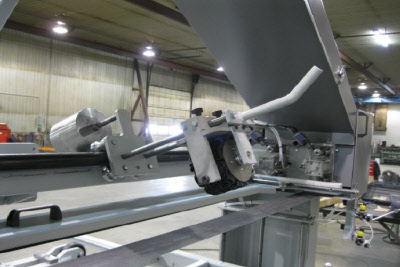

• Oversized traveling bar with one pressure contact wheel carriage
• Manual graphite pad to apply pressure and twist belt to smooth edges
• Various vacuum cups fixtures jigs based on enclosures box shapes and sizes

Includes the following:

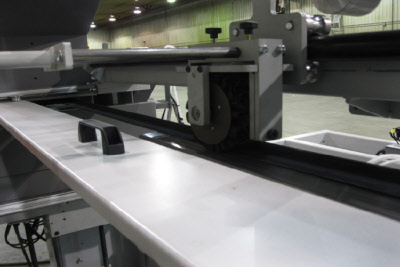

• Sliding safety guard cover
• A second contact wheel
• A second pneumatic tensioner
• A longer stroke on the multiple axis arm to keep the 48" sanding width capacity on both belts
