Stroke Sander 6 x 312 120" x 30"
Product Description

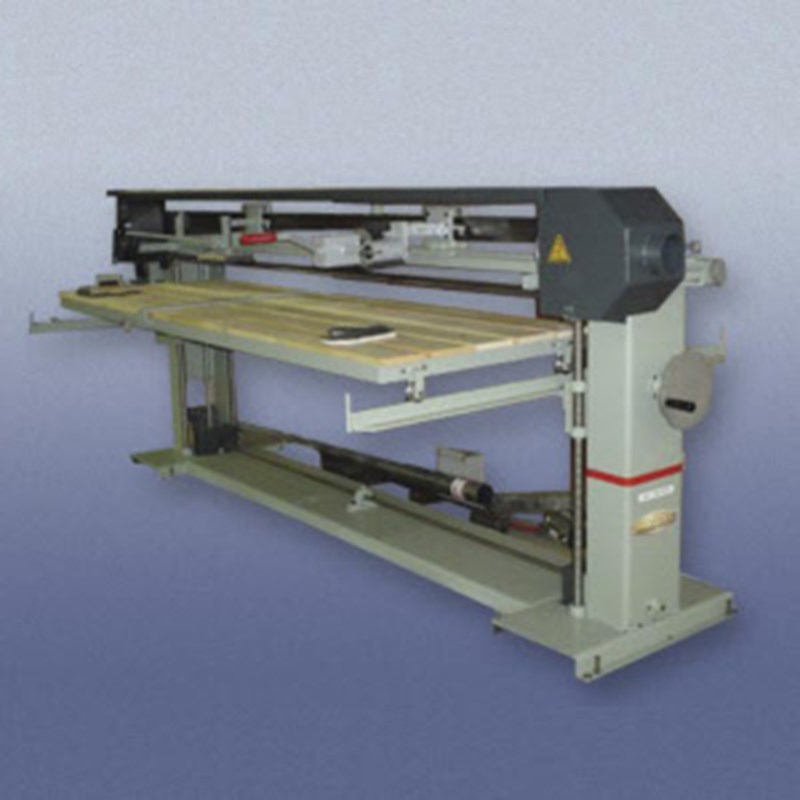

Built on a all-welded steel frame, for a long lasting durability, it features dust hoods, a work table with steel casters and aluminum pulleys on sealed ball bearings for smooth and quiet strokes.
Smooth and deburr cut metal and welded joints quickly and easily with a new 120”x30” stroke sander from Waters Industrial. The Waters Industrial stroke sander can put a number of different finishes on stainless steel and aluminum with available interchangeable abrasive belts.
A powerful 3-phase 5 HP motor provides a steady, continuous feed, with optional 7.5 HP and 5 HP variable speed motor upgrades available for optimal customization. Every Waters Industrial stroke sander comes with a hand block to manually apply pressure directly where it is needed for a perfect finish. You may also choose the optional contact wheel for semi-automatic finishes.
The Waters Industrial stroke sander can accommodate all metal finishers, with tables ranging in size from 48”x25”, 72”x28”, 100”x30”, 120”x30” to 144”x30”. For a fully automated metal grinding solution, take a look at our steel plate grinder.
Stroke Sander Videos
View this machine in action!
Product Features
| Model: | PMC-312-6 |
| Table Size: | 120" long x 30" wide 200lb cap |
| Vertical Adjustment: | 24" |
| Floor Space: | 60" x 150" |
| Abrasive Belt: | 6" x 312" |
| Electrical Equipment: | Magnetic starter 5 H.P. motor T.E.F.C. 1750 rpm 3 phase 220/440/550 volts Pulleys : 10" dia. X 6.25" face drive pulley Abrasive belt speed : 4300 ft/min |
| Table Size: | 120" x 30" |
| Belt Guards: | Upon Request |
OPTIONAL FEATURES:
| 7.5HP vs 5HP | $720.00/ea |
| Variable speed for a 5HP Motor | $4300.00/ea |
| Contact Wheel Assembly | $3200.00/ea |
| Graphite Glove Right Hand | $11.40/ea |
| Graphite Roll 6” X 2 yds | $22.86/ea |
| Hand Block 6" X 9" | $424.00/ea |
| Pneumatic Tensioner (recommended for applications with frequent changes of belts) |
$1250.00/ea |
|
|
|
Additional Options:
| Vacuum Cup to hold parts | $4,750.00 |
| Includes 6 vacuum cups fixed to the table, 1 vacuum generator with manifold, 1 selector to start/stop vacuum |
|
 |
|
ABRASIVE BELTS:
| Size | Grit | Pkg Size | Stainless Steel | |
| 6x312 | 80 | 20 | Yes | |
| 6x312 | 120 | 20 | Yes | |
| 6x312 | Scotch-Brite™ AM | 1 | Yes | |
| 6x312 | A100 | 10 | Yes |
