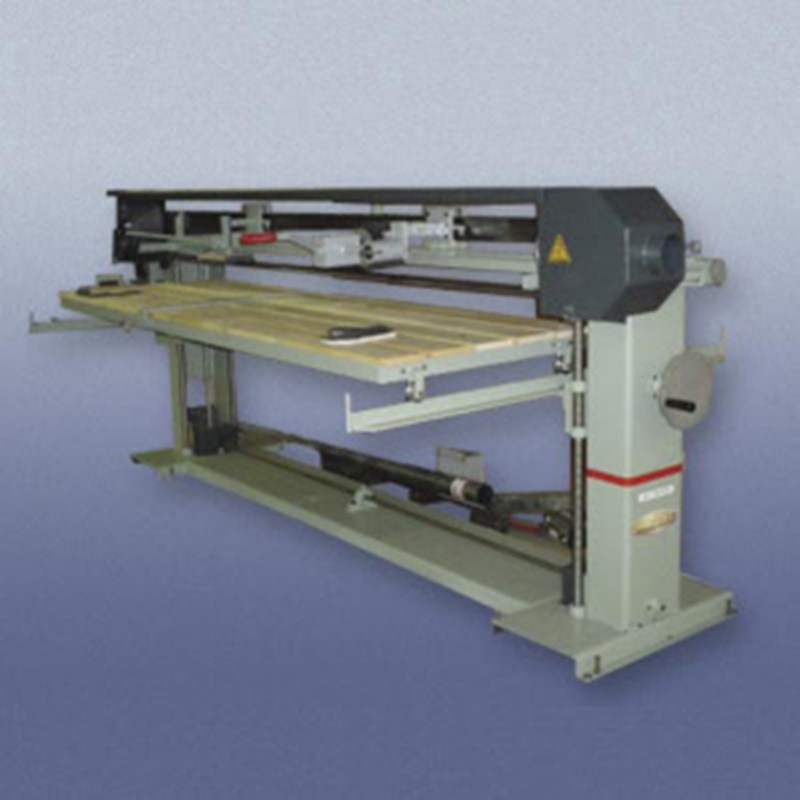

PMC-360-6 Heavy Duty Model, manually operated, 144 inch sanding and polishing machine
Product Description
Built on a all-welded steel frame, for a long lasting durability, it features dust hoods, a work table with steel casters and aluminum pulleys on sealed ball bearings for smooth and quiet strokes.
The Waters Industrial Stroke Sander can put a number of different finishes on flat metal surfaces. The stroke sander operates by utilizing an abrasive belt on a flat metal surface. Feed wheels send your part along the guide rails through the feed area. The drive wheel runs on a 3-phase, five HP motor. A tensioning wheel adjusts the tightness of the belt to reduce or increase the grinding action. The Waters Industrial Stroke Standard comes with a hand block to apply manual pressure on the belt and the work piece, else an optional contact wheel attachment can apply strong, steady pressure. This stroke sander comes in models of 5 different table sizes, including 48”x28”, 72”x28”, 100”x30”, 128”x30”, and 144”x30”. Waters Industrial produces superior quality stroke sanders, check out our M08075 stainless steel plate grinder.
Stroke Sander Videos
View this machine in action!
Product Features
| Model | PMC-360-6-HD |
| Table Size | 144" long x 30" wide, |
| Vertical Adjustment | 24" |
| Floor Space | 60" x 192" |
| Abrasive Belt | 6" x 360" |
| Abrasive Belt Speed | 4750 ft/min |
| Electrical Equipment: |
*Magnetic Starter |
| Belt Guards | Upon Request |
| Reinforced Frame | |
| Oversized Traveling Bar | |
| Table Capacity: 1000 lbs | |
OPTIONAL FEATURES:
| 7.5HP vs 5HP | $720.00/ea |
| Variable speed for a 5HP Motor | $4300.00/ea |
| Contact Wheel Assembly | $3200.00/ea |
| Graphite Glove Right Hand | $11.86/ea |
| Graphite Roll 6” X 2 yds | $22.71/ea |
| Hand Block 6" X 9" | $424.00/ea |
| Pneumatic Tensioner
(recommended for applications with frequent changes of belts) |
$1250.00/ea |
|
|
|
Additional Options:
| Vacuum Cup to hold parts | $4750.00 |
| Includes 6 vacuum cups fixed to the table, 1 vacuum generator with manifold,
1 selector to start/stop vacuum |
|
|
|
|
ABRASIVE BELTS:
| Size | Grit | Pkg Size | Stainless Steel | |
| 6x360 | 80 | 20 | Yes | |
| 6x360 | 120 | 20 | Yes | |
| 6x360 | Scotch-Brite™ AM | 1 | Yes | |
| 6x360 | A100 | 10 | Yes |
