All Products>Stroke Sander 6x360 144"x30"

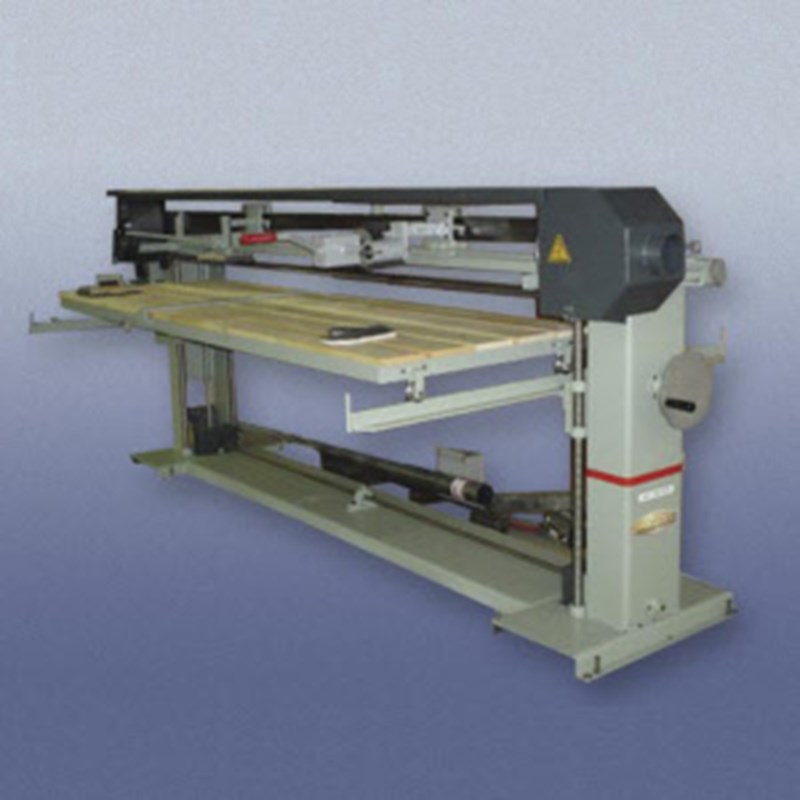

Stroke Sander 6x360 144"x30"

Product ID: M08050
$20,500.00

QTY:

Product Description



Built on a all-welded steel frame, for a long lasting durability, it features dust hoods, a work table with steel casters and aluminum pulleys on sealed ball bearings for smooth and quiet strokes.

The Waters Industrial Stroke Sander can put a number of different finishes on flat metal surfaces.  The stroke sander operates by utilizing an abrasive belt on a flat metal surface. Feed wheels send your part along the guide rails through the feed area. The drive wheel runs on a 3-phase, five HP motor. A tensioning wheel adjusts the tightness of the belt to reduce or increase the grinding action.  The Waters Industrial Stroke Standard comes with a hand block to apply manual pressure on the belt and the work piece, else an optional contact wheel attachment can apply strong, steady pressure.  This stroke sander comes in models of 5 different table sizes , including 48”x28”, 72”x28”, 100”x30”, 128”x30”, and 144”x30”. Browse more of our great stroke sanders and check out our superior stainless steel plate sander.

Stroke Sander Videos
View this machine in action!

Product Features



Model: PMC-360-6
Table Size: 144" long x 30" wide     200lb cap
Vertical Adjustment: 24"
Floor Space: 60" x 192"
Abrasive Belt: 6" x 360"
Electrical Equipment:

• Magnetic starter
• 7.5 H.P. motor T.E.F.C. 1750 rpm
• 3 phase 220/440/550 volts
• Pulleys : 10" dia. X 6.25" face drive pulley
• Abrasive belt speed : 4750 ft/min

Table Size: 144" x 30"

Belt Guards:

Upon Request

OPTIONAL FEATURES:

7.5HP vs 5HP $700.00/ea
Variable speed for a 5HP Motor $4100.00/ea
Contact Wheel Assembly $3200.00/ea
Graphite Glove Right Hand $11.40/ea
Graphite Roll   6” X 2 yds $22.86/ea
Hand Block  6" X 9" $424.00/ea
Pneumatic Tensioner

(recommended for applications with frequent changes of belts)

$1200.00/ea


Additional Options:

Vacuum Cup to hold parts $4600.00

Includes 6 vacuum cups fixed to the table, 1 vacuum generator with manifold,1 selector to start/stop vacuum


ABRASIVE BELTS:

Size Grit Pkg Size Stainless Steel
6x360 80 20 Yes
6x360 120 20 Yes
6x360 Scotchbrite AM 1 Yes
6x360 A100 10 Yes
