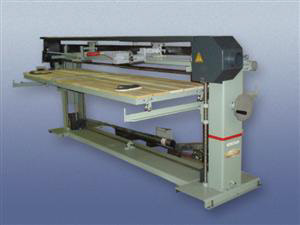

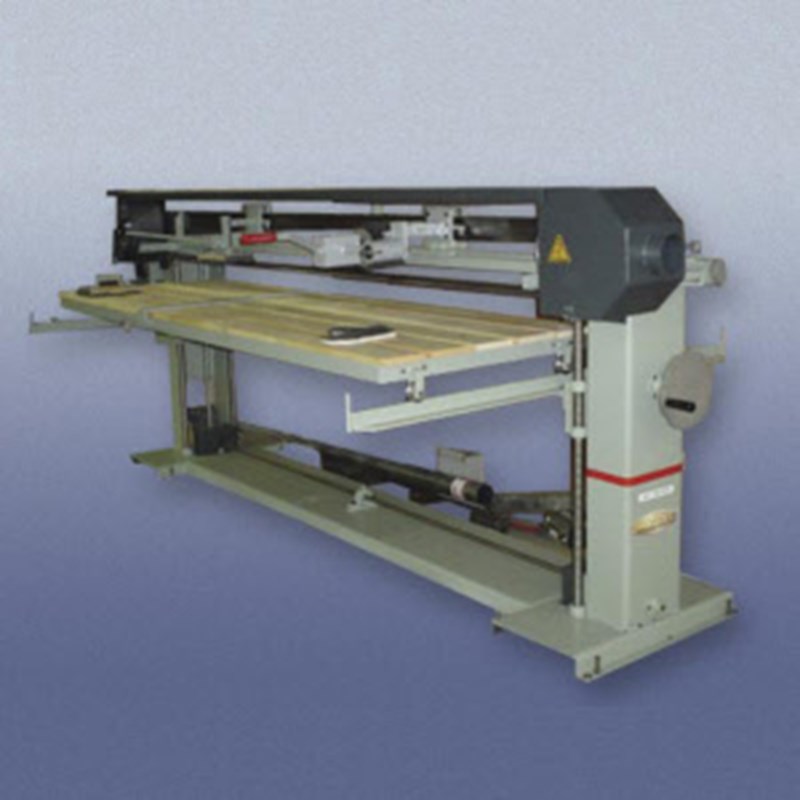

Stroke Sander 6x264 Heavy Duty 100"x30"

Product ID: M08000HD
$23,700.00

QTY:

Product Description

This stroke sander is a 100" sanding and polishing machine. Other sizes are available.

The Waters Industrial Stroke Sander can put a number of different finishes on flat metal surfaces.  The stroke sander operates by utilizing an abrasive belt on a flat metal surface. Feed wheels send your part along the guide rails through the feed area. The drive wheel runs on a 3-phase, five HP motor. A tensioning wheel adjusts the tightness of the belt to reduce or increase the grinding action.  The Waters Industrial Stroke Standard comes with a hand block to apply manual pressure on the belt and the work piece, else an optional contact wheel attachment can apply strong, steady pressure.  This stroke sander comes in models of 5 different table sizes , including 48”x28”, 72”x28”, 100”x30”, 128”x30”, and 144”x30”. Shop our full selection of stroke sanders including our exceptional stainless steel plate sander.

Stroke Sander Videos
View this machine in action!

Product Features

Model: PMC-264-6 Heavy Duty
Table Size: 100" long x 30" wide, Aluminum - covered w/ wood pine surface. 1000 lbs capacity
Vertical Adjustment: 24"
Floor Space: 60" x 150"
Abrasive Belt: 6" x 264"
Abrasive Belt Speed: 4750 ft/min
Pulleys:

10" dia x 6.25" face
drive pulley

Electrical Equipment:

* Magnetic Starter
* 7.5 HP motor
* TEFC 1750 rpm
* 3 phase 220/440/550 / 3 / 60

Belt Guards:

Upon Request

Reinforced Frame
Oversized Traveling Bar

OPTIONAL FEATURES:

7.5HP vs 5HP $700.00/ea
Variable speed for a 5HP Motor $4100.00/ea
Contact Wheel Assembly $3200.00/ea
Graphite Glove Right Hand $11.40/ea
Graphite Roll   6” X 2 yds $22.86/ea
Hand Block  6" X 9" $424.00/ea
Pneumatic Tensioner

(recommended for applications with frequent changes of belts)

$1,200.00/ea


Additional Options:

Vacuum Cup to hold parts $4600.00
Includes 6 vacuum cups fixed to the table, 1 vacuum generator with manifold,

1 selector to start/stop vacuum




ABRASIVE BELTS:

Size Grit Pkg Size Stainless Steel
6x264 80 20 Yes
6x264 120 20 Yes
6x264 Scotchbrite AM 1 Yes
6x264 A100 10 Yes
