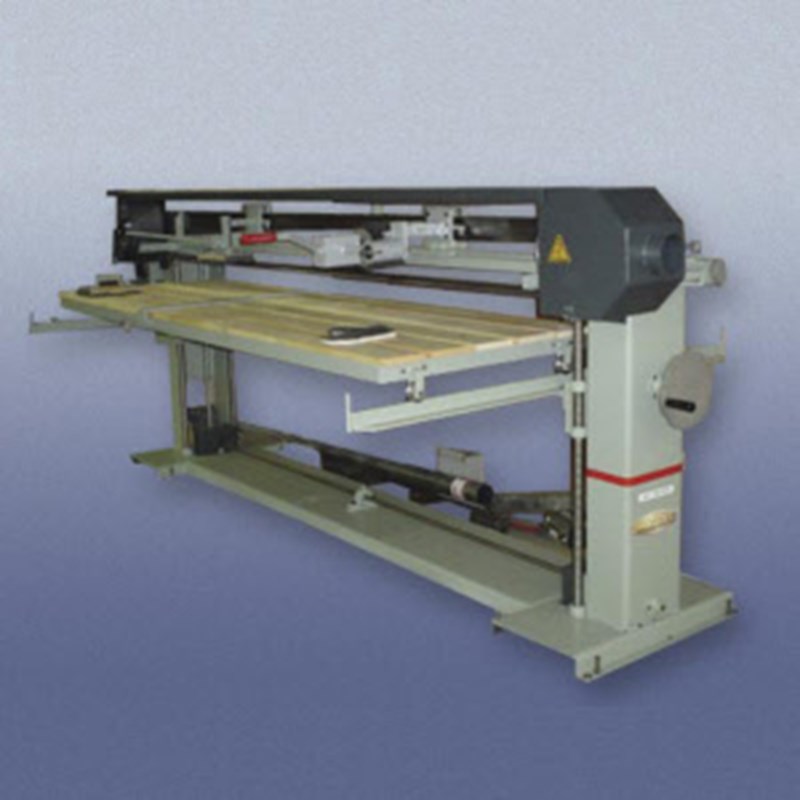

PMC-264-6 Model, manually operated, 100 inch sanding and polishing machine
Product Description
Built on a all-welded steel frame, for a long lasting durability, it features dust hoods, a work table with steel casters and aluminum pulleys on sealed ball bearings for smooth and quiet strokes.
Precisely finish your cut and welded metal pieces with a new 100”x30” Waters Industrial stroke sander. Stroke sanders operate by passing an abrasive belt through the material feed area along parallel guide rails. The belt is powered by a 3-phase 5 HP motor with an optional 7.5 HP motor upgrade. The motor operates at a consistent rate, but a 5 HP variable motor is also available for projects which need additional customization.
Sander operators use a hand block to apply pressure directly to the material surface, deburring and smoothing weld seams. You may also opt for the contact wheel which applies even, steady pressure.
This stroke sander from Waters Industrial is available in 5 sizes: 48”x25”, 72”x28”, 100”x30”, 120”x30” and 144”x30”. Each table has a 24” vertical adjustment to allow for polishing of many differently-shaped object.
You may also consider a fully-automated stainless steel plate sander to increase productivity.
View our stroke sander videos for more information about stroke sander features and in use demonstrations.
Stroke Sander Videos
View this machine in action!
Product Features
| Model: | PMC-264-6 |
| Table Size: | 100" long x 30" wide 200lb cap |
| Vertical Adjustment: | 24" |
| Floor Space: | 60" x 150" |
| Abrasive Belt: | 6" x 264" |
| Electrical Equipment: | Magnetic starter 5 H.P. motor T.E.F.C. 1750 rpm 3 phase 220/440/550 volts Pulleys : 10" dia. X 6.25" face drive pulley Abrasive belt speed : 4300 ft/min |
| Table Size: | 100" x 30" |
| Belt Guards: | Upon Request |
OPTIONAL FEATURES:
| 7.5HP vs 5HP | $700.00/ea |
| Variable speed for a 5HP Motor | $4100.00/ea |
| Contact Wheel Assembly | $3200.00/ea |
| Graphite Glove Right Hand | $11.40/ea |
| Graphite Roll 6” X 2 yds | $22.86/ea |
| Hand Block 6" X 9" | $434.00/ea |
| Pneumatic Tensioner (recommended for applications with frequent changes of belts) |
$1200.00/ea |
|
|
|
Additional Options:
| Vacuum Cup to hold parts | $4,600.00 |
| Includes 6 vacuum cups fixed to the table, 1 vacuum generator with manifold, 1 selector to start/stop vacuum |
|
 |
|
ABRASIVE BELTS:
| Size | Grit | Pkg Size | Stainless Steel | |
| 6x264 | 80 | 20 | Yes | |
| 6x264 | 120 | 20 | Yes | |
| 6x264 | Scotchbrite AM | 1 | Yes | |
| 6x264 | A100 | 10 | Yes |
