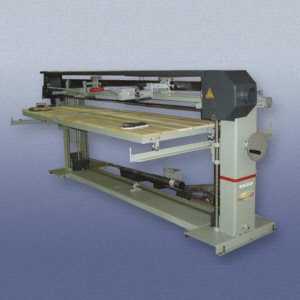

PMC-216-6 Model, manually operated, 72 inch sanding and polishing machine
Product Description
Built on a all-welded steel frame, for a long lasting durability, it features dust hoods, a work table with steel casters and aluminum pulleys on sealed ball bearings for smooth and quiet strokes.
The Waters Industrial 72”x28” stroke sander will help you ensure a smooth, professional finish on all of your cut- and welded-metal pieces. The stroke sander operates by passing an abrasive belt along parallel guide rails. A hand block or optional contact wheel attachment apply contact pressure to the metal surface, smoothing out burrs and weld seams.
The stroke sander is powered by a standard 3-phase 5 horsepower engine, with an optional 7.5 HP upgrade. The belt is kept at a steady, consistent speed for optimal polishing, but a variable speed 5 HP motor is available for ultimate customization.
This Waters Industrial stroke sander comes in 5 sizes: 48”x25”, 72”x28”, 100”x30”, 120”x30” and 144”x30”. The 24-inch vertical displacement allows polishing of materials with multiple sides. Find the stroke sander that’s right for you, or opt for our fully-automated stainless steel plate polisher.View our stroke sander videos for more information about stroke sander features and in use demonstrations.
Stroke Sander Videos
View this machine in action!
Product Features
| Model: | PMC-216-6 |
| Table Size: | 72" long x 28" wide 200lb. cap |
| Vertical Adjustment: | 24" |
| Floor Space: | 60" x 120" x 58.75" |
| Abrasive Belt: | 6" x 216" |
| Electrical Equipment: | Magnetic starter 5 H.P. motor T.E.F.C. 1750 rpm 3 phase 220/440/550 volts Pulleys : 10" dia. X 6.25" face drive pulley Abrasive belt speed : 3780 ft/min |
| Optional: | Single phase 5HP motor, 220 volts |
|
Belt Guards: |
Upon Request |
OPTIONAL FEATURES:
| Variable speed for a 5HP Motor | $4100.00/ea |
| Contact Wheel Assembly | $3200.00/ea |
| Graphite Glove Right Hand | $11.40/ea |
| Graphite Roll 6” X 2 yds | $22.86/ea |
| Hand Block 6" X 9" | $424.00/ea |
| Pneumatic Tensioner (recommended for applications with frequent changes of belts) |
$1200.00/ea |
|
|
|
Additional Options:
| Vacuum Cup to hold parts | $3,700.00 |
| Includes 6 vacuum cups fixed to the table, 1 vacuum generator with manifold, 1 selector to start/stop vacuum |
|
 |
|
ABRASIVE BELTS:
| Size | Grit | Pkg Size | Stainless Steel | Price |
| 6x216 | 80 | 20 | Yes | $60.63/ea |
| 6x216 | 120 | 20 | Yes | $47.79/ea |
| 6x216 | Scotchbrite AM | 1 | Yes |
$218.40 |
| 6x216 | A100 | 10 | Yes | $61.25/ea |
KEI DUST COLLECTOR (Cabinet Style)
| Part # | Model # |
Type |
| M08500 | 2130-3 | Dry |
| M08600 | 4130-3 | Wet |
|
|
||
