All Products>Enclosure Box Stroke Sander (Single Head)

Enclosure Box Stroke Sander (Single Head)

Product ID: M08700
$57,000.00

QTY:

Product Description

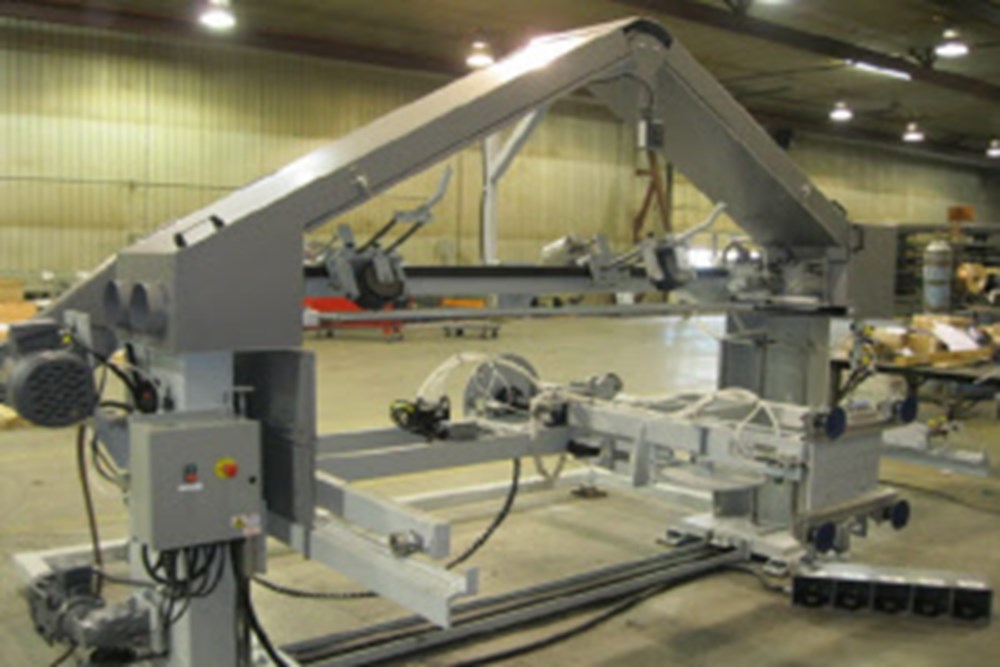

This enclosure box stroke sander is used to sand welded edges or polish the surfaces on steel enclosure boxes. Waters Industrial produces only the best stroke sanders including this exceptional enclosure box sander the superior steel plate polisher.

Stroke Sander Options:

  • 08750: Order a second abrasive belt to have simultaneously two belts with different grits ready to polish enclosure box. (Includes sliding safety guard cover, a second contact wheel and pneumatic tensioner and a longer stroke on the multiple axis arm to keep the 48" sanding width capacity on both belt.)
  • Various vacuum cups fixtures jigs based on enclosures box shapes and sizes

Product Features

  • Capacity varies from 4"x4"x3"deep to 72"x48"x20"deep
  • Maximum Weight Capacity is 250 lbs
  • Abrasive belts 4" wide at 4810 FPM, belt return in a triangle shape to allow safe access to sanding belts with manual holding pads
  • Pneumatic belt tensioner with linear guides, adjustable pressure by air regulator
  • Multiple axis arm to hold enclosure box by the means of vacuum cups
  • Vertical movement of the multiple axis arm powered by electrical motor at a speed of 1" per second
  • Oversized traveling bar with one pressure contact wheel carriage
  • Manual graphite pad to apply pressure and twist belt to smooth edges
